DY-159

DY-159

Forged t-pipe body, STD Port

3/4”-1 1/2”400WOG,100WSP

Pipe Threaded comply With ANSI B1.20.1

Meet Mss sp-110 Speacification

产品详情

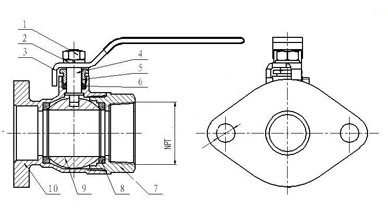

MATERIAL LIST

NPT

DN

L

H

F

3/4

19

66.5

60.5

110

1

25

78

65

110

1 1/4

29

90

69

110

1 1/2

37

99.5

74

110



Packing Specification



Specification

Weight(g)

Each Box /PCS

Size of Box(CM)

Each Case/PCS

Size of Case(CM)

NW(kg)

GW(kg)

3/4"

780

2

14.5*10.5*9.5

24

34*31*21.5

18.7

19.7

1"

825

2

15*10.5*10

18

34*17*32.5

14.9

15.9

1-1/4"

942

2

16.5*10.5*10.5

12

34*18.5*23.5

11.3

12.3

1-1/2"

1180

2

19*10.5*11

10

34*21*24.5

11.8

12.8
